FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
F F P 2 ATE MS C HU TZMASKE
O HNE AUS AT E M V E N TI L
MO DEL L J D - 9 9
• HOH E FI LTER L EISTU N G
  ! " # ! $ % " &' ( )' " * +
• GERI NGER ATEMW IEDE RSTA N D
  &*, $ ( - . " .') + / -
• NATÜR LIC HES TRAGEG E FÜ H L$
  / &* . - ( $ '* $ ) $ + )' 0 ( ) & $ % - - &

                                                 !!"#$%& '(
                                                          6896
                                                          -+$1234$5661$7$)14$5663
FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
Voll zertifizierte Atemschutzmaske FFP2 nach EN149:2001+A1:2009
Konformitätskennzeichen entsprechend der PSA-VO (EU) 2016/425.

Trotz PSA Richtlinie ist die Verwendung einer FFP2 Maske im medizi-
nischen Bereich nicht nur erlaubt, sondern wird die Verwendung auf
Grund Ihrer filtrierenden Wirkung unter anderem von der BfArM, dem
RKI und der IHK im medizinischen Bereich empfohlen.

    F F P 2 ATE MSCHUTZMASKE O H NE AUS ATEM V ENTIL
    M O D EL L JD -99
        PRODUKTINFORMATIONEN
                                                                      INFORMATIONEN ZUM HERSTELLER
        •   5-lagig                                                   QUALITÄTSSICHERUNG
        •   Elastische Ohrschlaufen
                                                                      Die Qualität stellt bei der FFP2-Masken-Produktion den wich-
        •   Material: 33% Vlies, 52% Meltblown Vlies,                 tigsten Faktor dar. Daher verfügt der Hersteller Wenzhou Jiada
            15% Heißluft-Baumwolle
                                                                      Technology CO. Ltd. über ein anerkanntes Qualitätsmanage-
        •   Farbe: weiß                                               mentsystem (ISO 9001:2015) sowie zahlreiche Mitarbeiter in
        •   Einmalgebrauch                                            der Qualitätsprüfung. Diese stellen Schichtübergreifend bei
        •   Latex-frei                                                jeder Charge die Qualität der Masken sicher. Hierbei werden
        •   3 Jahre Haltbarkeit unter Einhaltung                      zuerst optische und haptische Merkmale nach einer hinrei-
            der Lagervorgaben                                         chenden Checkliste überprüft (Passform, Überprüfung von

        •   Abmessung: 10,5*15,5cm                                    Filtervliesen, Prüfung der Stabilität von Nasenklammern und
                                                                      Bändern). Anschließend erfolgen Funktionstests zur Über-
                                                                      prüfung der Filterleistung sowie des Atemwiderstands. Ferner
        VERPACKUNG                                                    wurde der besondere Qualitätsanspruch durch die Zertifizie-
                                                                      rung einer von der europäischen Union zugelassenen benann-
        •   Durchgängig in deutscher Sprache                          ten Stelle (CE 0370), unterstrichen. Dieses bescheinigte neben
        •   Einzeln verpackte Maske im Polybag mit                    dem Modul B (Baumusterprüfung) das Modul C2, welches die
            allen notwendigen Informationen                           Überwachung der Konformität mit der Bauart der Maske „JD-
        •   Polybag inkl. QR-Code mit hinterlegter                    99“ auf der Grundlage einer internen Fertigungskontrolle mit
            Konformitätserklärung                                     überwachten Produktprüfungen gemäß dem Standard EN
        •   20 Polybags in einer Box                                  149:2001+A1:2009 in unregelmäßigen Abständen sicherstellt.
            (Box: 24*26*4cm)                                          Die Produktionskapazität der FFP2-Maske „JD-99“ liegt bei
        •   60 Boxen im Karton                                        mehreren Millionen Stück pro Tag. Ferner wird diese FFP2-
            (1.200 Masken / Karton)                                   Maske auch unter verschiedenen Eigenmarken vertrieben und
        •   Karton: 60*50*33 / 11 Kg                                  hat bereits in den deutschen Handel gefunden. Weiter ist der
        •   Inkl. Barcode je Verpackungseinheit                       Hersteller auf der sogenannten „White List“ als Produzent für
                                                                      FFP2 Atemschutzmasken gelistet.
FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
I NFORMATIO NEN ZUR UMVER PAC KUNG
I N K L . BARCODE JE VE RPACKUNGS EINHEIT

FFP2 FILTRIERTE HALBMASKE
JD-99

                                                                      JD-99 FFP2

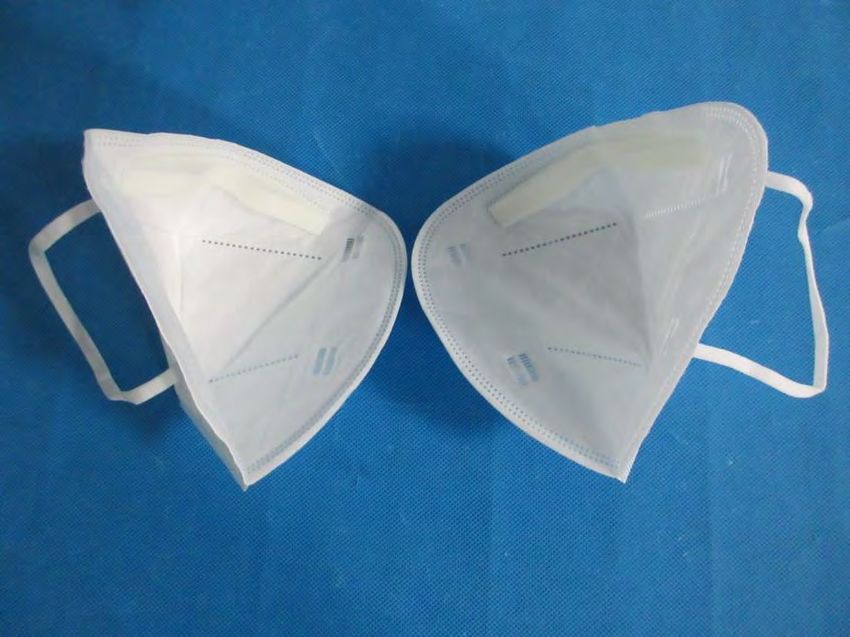

                                                                      Ansicht von oben

JD-99 FFP2 POLYBAG                                                    JD-99 FFP2
Jede Maske befindet sich hygienisch und einzeln verpackt im Polybag   Vorder- und HInteransicht

                                                                      JD-99 FFP2 ANWENDUNG
                                                                      Die Maske besticht durch eine gute Passform
FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
POLYBAG
Einzeln Verpackt im Polybag

JD-99 FFP2                                 JD-99 FFP2
Polybag Vorderseite                        Polybag Rückseite

20ER BOX MASKEN

JD-99 20ER BOX                             JD-99 FFP2
20er Box Vorderseite                       20er Box Rückseite

JD-99 FFP2
Es befinden sich jeweils 20 Stk. pro Box

                                           JD-99 FFP2
                                           Mehrere Polybags
FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
LGAI Technological Center, S.A. (APPLUS)
Campus UAB - Ronda de la Font del Carme s/n
08193 Bellaterra (Barcelona)
T +34 93 567 20 00
www.applus.com

                                   CERTIFICADO DE EXAMEN UE DE TIPO
                                            EU-TYPE EXAMINATION CERTIFICATE

                                                                                                       No.            0370-4483-PPE/B
                                                                                                      No.
                                                                                                          .
    ORGANISMO NOTIFICADO Nº
                                                                                  0370 - LGAI TECHNOLOGICAL CENTER (APPLUS)
    NOTIFIED BODY NUMBER

    SOLICITANTE                                                                   Wenzhou Jiada Technology Co., Ltd.
    APPLICANT                                                                     No.401, Building 19th, Rainbow Wisdom Park, Longgang City,
                                                                                  Cangnan Area, Wenzhou City, Zhejiang Province, China.

    FABRICANTE                                                                    Wenzhou Jiada Technology Co., Ltd.
    MANUFACTURER                                                                  No.401, Building 19th, Rainbow Wisdom Park, Longgang City,
                                                                                  Cangnan Area, Wenzhou City, Zhejiang Province, China.

       REGLAMENTO DE APLICACIÓN PARA DAR LA CONFORMIDAD / APPLICABLE REGULATION TO GIVE CONFORMITY:
                        REGLAMENTO (UE) 2016/425 SOBRE LOS EQUIPOS DE PROTECCIÓN INDIVIDUAL
                                        REGULATION (EU) 2016/425 PERSONAL PROTECTIVE EQUIPMENT

    PROCEDIMIENTO DE EVALUACIÓN DE LA                                             Módulo // Module:      B
    CONFORMIDAD
    CONFORMITY ASSESSMENT PROCEDURE                                               EXAMEN UE DE TIPO / EU TYPE EXAMINATION

    IDENTIFICACIÓN DEL EPI (NÚMERO DE TIPO)                                       Ref.: JD-99
    IDENTIFICATION OF THE PPE (TYPE NUMBER)                                       FILTERING HALF MASK

    NIVEL O NIVELES DE RENDIMIENTO O LA CLASE
    DE PROTECCIÓN DEL EPI / PERFORMANCE LEVEL                                     FFP2 NR
    OR PROTECTION CLASS OF THE PPE
                                                                                  EN 149:2001 + A1:2009 Dispositivos de protección respiratoria. Medias
                                                                                  máscaras filtrantes de protección contra partículas. Requisitos, ensayos,
    NORMAS ARMONIZADAS / HARMONISED STANDARDS                                     marcado.
                                                                                  EN 149:2001 + A1:2009 Respiratory protective devices. Filtering half
                                                                                  masks to protect against particles. Requirements, testing, marking

    FECHA DE EMISIÓN / ISSUE DATE                                                 28/09/2020
    VALIDEZ HASTA / VALIDITY UNTIL                                                28/09/2025
    El presente certificado se mantendrá vigente durante 5 años siempre que el producto descrito no sea modificado y cumpla los requisitos esenciales de
    salud y seguridad establecidos en el Reglamento (UE) 2016/425. Para asegurar dicho cumplimiento, este certificado deberá ir acompañado de la
    documentación correspondiente a la Evaluación de Conformidad con el tipo según módulo C2, D (realizada por un Organismo Notificado, según frecuencia
    establecida).
    This certificate will remain valid for 5 years as long as the indicated product is not modified and fulfills the essential requirements of health and safety
    established in (EU) Regulation 2016/425. To ensure such compliance, this certificate must be accompanied by the documentation corresponding to the
    Conformity Assessment to type according to C2, D(carried out by a Notified Body according, to the established frequency).

                                                                 Xavier Ruiz Peña
                                                            Managing Director, Product Conformity B.U.
    Este documento carece de validez sin su anexo técnico, cuyo número coincide con el del certificado.
    This document is not valid without its technical annex, whose number coincides with the number of certificate.
    Puede comprobarse la validez de este certificado en nuestra página web / You can check the validity of this certificate into our website at:
    www.appluslaboratories.com/certified_products

                                                    LGAI TECHNOLOGICAL CENTER, S.A. CIF: A-63207492
  Page 1 of 2
FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
LGAI Technological Center, S.A. (APPLUS)
Campus UAB - Ronda de la Font del Carme s/n 08193
Bellaterra (Barcelona)
T +34 93 567 20 00
www.appluslaboratories.com

                                  CERTIFICADO DE CONFORMIDAD CON EL TIPO
                                          CONFORMITY TO TYPE CERTIFICATE

                                                                                                        No.        0370-4616-PPE/C2

                                                                                                         No.
   ORGANISMO NOTIFICADO Nº
                                                                         0370 - LGAI TECHNOLOGICAL CENTER (APPLUS)
   NOTIFIED BODY NUMBER

   SOLICITANTE / FABRICANTE                                              Wenzhou Jiada Technology Co., Ltd.
   APPLICANT / MANUFACTURER                                              No.401, Building 19th, Rainbow Wisdom Park, Longgang City,
                                                                         Cangnan Area, Wenzhou City, Zhejiang Province, China.

   PLANTA DE PRODUCCIÓN                                                  Wenzhou Jiada Technology Co., Ltd.
   PRODUCTION SITE                                                       No.401, Building 19th, Rainbow Wisdom Park, Longgang City,
                                                                         Cangnan Area, Wenzhou City, Zhejiang Province, China.

   REGLAMENTO DE APLICACIÓN PARA DAR LA CONFORMIDAD / APPLICABLE REGULATION TO GIVE CONFORMITY:

                      REGLAMENTO (UE) 2016/425 SOBRE LOS EQUIPOS DE PROTECCIÓ INDIVIDUAL
                                     REGULATION (EU) 2016/425 PERSONAL PROTECTIVE EQUIPMENT

                                                                         Módulo // Module:         C2
                                                                         BASADA EN EL CONTROL INTERNO DE LA PRODUCCIÓN MÁS EL
   PROCEDIMIENTO DE EVALUACIÓN DE LA
                                                                         CONTROL SUPERVISADO DE LOS PRODUCTOS A INTERVALOS
   CONFORMIDAD CON EL TIPO
                                                                         ALEATORIOS
   CONFORMITY ASSESSMENT PROCEDURE TO TYPE
                                                                         BASED ON INTERNAL PRODUCTION CONTROL PLUS SUPERVISED
                                                                         CONTROL OF PRODUCTS AT ALEATORY INTERVALS

   IDENTIFICACIÓN DEL EPI (NÚMERO DE TIPO)                               Ref.: JD-99
   IDENTIFICATION OF THE PPE (TYPE NUMBER)                               FILTERING HALF MASK
   NIVEL O NIVELES DE RENDIMIENTO O LA
   CLASE DE PROTECCIÓN DEL EPI /
                                                                         FFP2 NR
   PERFORMANCE LEVEL OR PROTECTION CLASS OF
   THE PPE
   FECHA DE EMISIÓN / ISSUE DATE                                         19/10/2020
   VALIDEZ HASTA / VALIDITY UNTIL:                                       19/10/2021
   El presente certificado se mantendrá vigente durante 1 año siempre que no se modifiquen las condiciones establecidas en el Certificado de
   Examen UE de Tipo referenciado en el Anexo.
   This certificate will remain in force for 1 year as long as the conditions established in the EU Type certificate referenced in the annex are not
   modified.

                                                             Xavier Ruiz Peña
                                                        Managing Director, Product Conformity B.U.

 Este documento carece de validez sin su anexo técnico, cuyo número coincide con el del certificado.
 This document is not valid without its technical annex, whose number coincides with the number of certificate.

 Puede comprobarse la validez de este certificado en nuestra página web / You can check the validity of this certificate on our website:
 www.appluslaboratories.com/certified_products

 Página 1 de 2
                                                 LGAI TECHNOLOGICAL CENTER, S.A. CIF: A-63207492
FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
LGAI Technological Center, S.A. (APPLUS)
Campus UAB – Ronda de la Font del Carme, s/n
E - 0 19 Bellaterra (Barcelona)
T + 4 9 56 20 00
www.appluslaboratories.com

                                                                                               Technical Annex Ed. 1
                                                                                                         2 /09/2020

                                               ANEXO T CNICO
                                               TECHNICAL ANNEX
                                                                                     0370-4483-PPE/B

                         I. MODELOS INCLUIDOS EN EL CERTIFICADO
                                     REFERENCES INCLUDED IN THIS CERTIFICATE

        MARCA
                                                          JIADA
        BRAND

        IDENTIFICACIÓN DEL EPI (NÚMERO DE TIPO)           Ref.: JD-99
        IDENTIFICATION OF THE PPE (TYPE NUMBER)           FILTERING HALF MASK

        NIVEL O NIVELES DE RENDIMIENTO O LA
        CLASE DE PROTECCIÓN DEL EPI
                                                          FFP2 NR
        PERFORMANCE LEVEL OR PROTECTION CLASS OF
        THE PPE

        INFORME DE ENSA O                                 S200 2 02 01E issued by Shenzhen NTEK Testing
        TEST REPORT                                       Technology Co., Ltd. (NTEK)

Page 2 of 2
FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
LGAI Technological Center, S.A. (APPLUS)
   Campus UAB - Ronda de la Font del Carme s/n
   08193 Bellaterra (Barcelona)
   T +34 93 567 20 00
   www.appluslaboratories.com

                                                                                             Technical Annex Ed. 1
                                                                                                       19/10/2020

                                            ANE O T CNICO
                                            TECHNICAL ANNEX
                                                                                    0370-4616-PPE/C2

                          I. MODELOS INCLUIDOS EN EL CERTIFICADO
                                     REFERENCES INCLUDED IN THIS CERTIFICATE

           Nº CERTIFICADO DE E AMEN UE DE TIPO
                                                     0370-44 3-PPE/B
           NR. EU TYPE EXAMINATION CERTIFICATE

           EMITIDO POR                               LGAI TECHNOLOGICAL CENTER S.A. (APPLUS)
           ISSUED BY                                 (O gani o noti icado nº 0370 / Notified Body nr. 0   0).
           FECHA EMISIÓN
                                                     2 /09/2020
           ISSUE DATE
           VALIDEZ HASTA
                                                     2 /09/2025
           VALIDITY UNTIL

           MARCA
                                                     JIADA
           BRAND

           IDENTIFICACIÓN DEL EPI (NÚMERO DE
                                                     Ref.: JD-99
           TIPO)
           IDENTIFICATION OF THE PPE (TYPE NUMBER)   FILTERING HALF MASK

           NIVEL O NIVELES DE RENDIMIENTO O LA
           CLASE DE PROTECCIÓN DEL EPI /
                                                     FFP2 NR
           PERFORMANCE LEVEL OR PROTECTION CLASS
           OF THE PPE
           INFORME DE ENSA O DE CONFORMIDAD
                                                     S20100904101E issued by Shenzhen NTEK Testing
           CON EL TIPO
                                                     Technology Co., Ltd.
           CONFORMITY TO TYPE TEST REPORT

Página 2 de 2
FFP! ATEMSCHUTZMASKE OHNE AUSATEMVENTIL MODELL JD - HOHE FILTERLEISTUNG GERINGER ATEMWIEDERSTAND NATÜRLICHES TRAGEGEFÜHL
Report No.: S20082702701E                                                                                    page 1 of 12

                                Test Report
Applicant:                      Wenzhou Jiada Technology Co.,Ltd
Address:                        No.401, Building 19th, Rainbow Wisdom Park, Longgang City, Cangnan
                                Area, Wenzhou City, Zhejiang Province, China.

The following sample(s) was/were submitted and identified on behalf of the client as:
Product name:          FILTERING HALF MASK
Model:                 JD-99
Trade mark:            JIADA
Manufacturer:          Wenzhou Jiada Technology Co.,Ltd
Address:               No.401, Building 19th, Rainbow Wisdom Park, Longgang City, Cangnan
                       Area, Wenzhou City, Zhejiang Province, China.
Classification:        FFP2 NR
Sample quantity:       120 Pcs

Sample Received
                                Aug. 28, 2020
Date:
Testing Period:                 Aug. 28, 2020~ Sep. 02, 2020

Test Requirement:
According to the requirement of the client, the test item(s) of the sample is according to the standard
EN149:2001+A1:2009.
Test Result(s): Please refer to the following page(s)

Test Method: Please refer to the following page(s)

      Compiled by:                                              Reviewed by:

      Approved by:                                              Date:                            2020-09-09

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                     page 2 of 12

Summary of assessment
                                     Clause                                                        Assessment
 7.     isual inspection                                                                                NRq
 7.4 Packaging                                                                                          Pass
 7. Material                                                                                            Pass
 7. Cleaning and disinfecting                                                                           N.A.
 7.7 Practical performance                                                                              Pass
 7.8 Finish of parts                                                                                    Pass
 7.9.1 Total inward leakage                                                                             Pass
 7.9.2 Penetration of filter material                                                                   Pass
 7.10 Compatibility with skin                                                                           Pass
 7.11 Flammability                                                                                      Pass
 7.12 Carbon dio ide content of the inhalation air                                                      Pass
 7.1 Head harness                                                                                       Pass
 7.14 Field of vision                                                                                   Pass
 7.1 E halation valve(s)                                                                                N.A.
 7.1    Breathing resistance                                                                            Pass
 7.17 Clogging                                                                                          N.A.
 7.18 Demountable parts                                                                                 N.A.

Key
       Pass                                                 Requirement satisfied.
       NRq                                            The clauses were not required.
       Fail          Requirement not satisfied. Refer to the Result details section for more information.
       N.A.                                             Requirement not applicable.

                                       Test                                                           ncertainty
                             Total inward leakage                                                       .40
                    Penetration of filter material (NaCl)                                              1. 0
                Penetration of filter material (Paraffin         il)                                   1.78
               Carbon dio ide content of the inhalation air                                             . 4
                      Breathing resistance ( 0 L min)                                                   . 0
                      Breathing resistance (9 L min)                                                   2.20
                     Breathing resistance (1 0 L min)                                                  2.00

 Assessment relates only to those specimens which were tested and are the subject of this report.

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                    page     of 12

                                                     Test Result
 Respiratory Protective Devices             Filtering Half Masks to Protect against Particles               Requirements,
 Testing, Marking
 (EN 149:2001+A1:2009)

Clause 7.3 isual inspection

                           Test Requirement                                             Results                 Comment
 Marking and the information supplied by the manufacturer,                        The clauses were
                                                                                                                    NRq
 requirements refer to clause 9 and clause 10.                                      not required.

 Clause 7. Packaging
 (EN 149:2001+A1:2009 Clause 8.2)

                           Test Requirement                                             Results                 Comment
 Particle filtering half masks shall be offered for sale
 packaged in such a way that they are protected against                                  Comply                     Pass
 mechanical damage and contamination before use.

 Clause 7.5 Material
 (EN 149:2001+A1:2009, Clause 8.2                8. .1     8. .2)

                           Test Requirement                                             Results                 Comment
 Materials used shall be suitable to withstand handling and
 wear over the period for which the particle filtering half mask                         Comply                     Pass
 is designed to be used.
 After undergoing the conditioning described in 8. .1 none of
 the particle filtering half masks shall have suffered                                   Comply                     Pass
 mechanical failure of the facepiece or straps.
 When conditioned in accordance with 8. .1 and 8. .2 the
                                                                                         Comply                     Pass
 particle filtering half mask shall not collapse.
 Any material from the filter media released by the air flow
 through the filter shall not constitute a hazard or nuisance                            Comply                     Pass
 for the wearer.

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                    page 4 of 12

 Clause 7.6 Cleaning and Disinfecting
 (EN 149:2001+A1:2009, Clause 8.4 8.                     8.11)
                           Test Requirement                                             Results                 Comment
 If the particle filtering half mask is designed to be re-usable,
 the materials used shall withstand the cleaning and
 disinfecting agents and procedures to be specified by the                          Not applicable
 manufacturer.                                                                     (Not designed to                 N.A.
 With reference to 7.9.2, after cleaning and disinfecting the                        be re-usable)
 re-usable particle filtering half mask shall satisfy the
 penetration requirement of the relevant class.

 Clause 7.7 Practical Performance
 (EN 149:2001+A1:2009, Clause 8.4)

                                                                                        Results
                           Test Requirement                                                                     Comment
                                                                                  Sample 11 ~12 :
 General:
 a) head harness comfort
 b) security of fastenings                                                         No imperfections
 c) field of vision
 d) any other comments reported by the wearer on request.
 Walking Test:
 The subjects wearing normal working clothes and wearing
 the particle filtering half mask shall walk at a regular rate of
                                                                                   No imperfections
   km h on a level course. The test shall be continuous,
 without removal of the particle filtering half mask, for a
 period of 10 min.
                                                                                                                   Pass
 Work Simulation Test:
 a) walking on the level with headroom of (1. ±0.2)m for
   min
 b) crawling on the level with headroom of (0.7±0.0 )m for
   min
 c) filling a small basket (see Figure 1, appro imate volume                       No imperfections
    8 L) with chippings or other suitable material from a
 hopper which stands 1. m high and has an opening at the
 bottom to allow the contents to be shovelled out and a
 further opening at the top where the basket full of chippings
 is returned.

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                    page     of 12

 Clause 7.8 Finish of Parts
 EN 149:2001+A1:2009, Clause 8.2)

                           Test Requirement                                              Results                  Comment
 Parts of the device likely to come into contact with the                         No sharp edges or
                                                                                                                    Pass
 wearer shall have no sharp edges or burrs.                                             burrs

 Clause 7.9.1 Total nward Leakage
 (EN 149:2001+A1:2009 Clause 8. )

                           Test Requirement                                              Results                  Comment
   For particle filtering half masks fitted in accordance with the
       manufacturer s information, at least 4 out of the 0
  individual e ercise results (i.e. 10 subjects      e ercises) for
          total inward leakage shall be not greater than:
                             2    for FFP1
                             11 for FFP2
                                                                                       Detail refer to
                                  for FFP                                                                           Pass
                                                                                        Appendi 1
    and, in addition, at least 8 out of the 10 individual wearer
    arithmetic means for the total inward leakage shall be not
                              greater than:
                             22 for FFP1
                               8 for FFP2
                               2 for FFP

 Appendix 1: Summarization of Test Data
                                            Normal            Head            Head          Speak         Normal
                                                                                                                         Mean
 Subject       Sample       Condition      Breathing        Side Side         p Down        Loudly       Breathing
                                                                                                                          ( )
                                              ( )              ( )             ( )           ( )            ( )
  Huang           1            A.R.            4.               4.              4.7           4.9           4.4            4. 8
   Zhou           2            A.R.              .7             4.0             4.1           4.             .              .94
    Ma                         A.R.            2.8               .1               .0           .            2.9             .02
    Wu            4            A.R.              .               .                .            .8            .1             .4
     Li                        A.R.            4.               4.9             4.8            .1           4.             4.78
    Wu                         T.C.              .1              .                .            .8            .2             . 8
   Zhai           7            T.C.            2.4              2.              2.7            .0           2.             2.
  Zheng           8            T.C.              .               .8               .7          4.1            .4             .70
  Huang           9            T.C.            4.               4.8             4.9            .2           4.8            4.8
    Wu           10            T.C.              .               .8               .9          4.1            .4             .74

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                    page     of 12

Facial Dimension:
                             Length of Face             Width of Face             Depth of Face             Width of Mouth
       Subject
                                  (mm)                      (mm)                      (mm)                      (mm)
        Huang                      1 0                       140                       12
         Zhou                       110                       148                        12
           Ma                       120                       1 8                        110                         0
          Wu                        110                       148                        121                        44
           Li                       112                       14                         112                         0
          Wu                        120                       1 4                        128                         4
          Zhai                      1                         1                          12
         Zheng                      11                        1                          112                         4
        Huang                       11                        1 7                        118                         1
          Wu                        112                       172                        118

 Clause 7.9.2 Penetration of Filter Material
 (EN 149:2001+A1:2009, Clause 8.11 EN 1 274-7:2019)

                           Test Requirement                                             Results                 Comment
 The penetration of the filter of the particle filtering half mask
 shall meet the requirements of the following table.

                               Ma imum penetration of test aerosol
                         Sodium chloride test                Paraffin oil test
 Classification               9 L min                          9 L min               Detail refer to
                                                                                                                    Pass
                                                                                      Appendi 2
                                  ma .                             ma .
      FFP1                         20                               20
      FFP2
      FFP                            1                               1

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                    page 7 of 12

Appendix 2: Summarization of Test Data
 Penetration of filter material
                                                                              Penetration ( )                  Assessment

     Aerosol             Condition           Sample No.             Average in
                                                                                         Ma . during
                                                                     0s after
                                                                                          e posure
                                                                       min
                                                  1                      1.0
                            A.R.                  14                     1.0
                                                  1                      0.9
                                                  19                     0.8
     Sodium
                            S.W.                  20                     0.8
   chloride test
                                                  21                     0.8
                                                  2                                            0.9
                        M.S. + T.C.               2                                            1.0
                                                  27                                           0.9
                                                  1                      0.9                                       Pass
                            A.R.                  17                     1.0
                                                  18                     0.9
                                                  22                     0.7
 Paraffin oil test          S.W.                  2                      0.9
                                                  24                     0.
                                                  28                                           2.9
                        M.S. + T.C.               29                                           4.1
                                                      0                                        2.7
                                   Flow conditioning: 9 .0 L min

 Clause 7.10 Compatibility with Skin
 (EN 149:2001+A1:2009, Clause 8.4                8. )

                           Test Requirement                                             Results                 Comment
 Materials that may come into contact with the wearer s skin                      No irritation or any
 shall not be known to be likely to cause irritation or any other                   other adverse                  Pass
 adverse effect to health.                                                         effect to health.
Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                    page 8 of 12

 Clause 7.11 Flammability
 (EN 149:2001+A1:2009, Clause 8. )

                            Test Requirement                                              Results                Comment
 The material used shall not present a danger for the wearer
 and shall not be of highly flammable nature when tested, the                        Detail refer to
                                                                                                                   Pass
 particle filtering half mask shall not burn or not to continue on                    Appendi
 burn for more than s after removal from the flame.

 Appendix 3: Summarization of Test Data
 Flammability
        Condition                    Sample No.                                  Result                         Assessment
                                            1                               Nonflammable
           A.R.                                                 Flammable, burn for no more than
                                            2
                                                                                s
                                                                Flammable, burn for no more than                     Pass
                                                                                s
           T.C.
                                                                Flammable, burn for no more than
                                            4
                                                                                s

 Clause 7.12 Carbon Dioxide Content of The nhalation Air
 (EN 149:2001+A1:2009, Clause 8.7)

                            Test Requirement                                              Results                Comment
 The carbon dio ide content of the inhalation air (dead                              Detail refer to
                                                                                                                   Pass
 space) shall not e ceed an average of 1.0 (by volume)                                Appendi 4

 Appendix : Summarization of Test Data
 Carbon Dio ide Content of The Inhalation Air
      Condition                     Sample No.                                  Result                         Assessment
                                                                     0.
                                                                                          Mean value:
          A.R.                                                       0. 1                                          Pass
                                                                                            0. 1
                                          7                          0.48

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                    page 9 of 12

 Clause 7.13 ead arness
 (EN 149:2001+A1:2009, Clause 8.4                8. )

                           Test Requirement                                             Results                 Comment
 The head harness shall be designed so that the particle
                                                                                         Comply
 filtering half mask can be donned and removed easily.
 The head harness shall be adjustable or self-adjusting and
                                                                                                                   Pass
 shall be sufficiently robust to hold the particle filtering half
                                                                                         Comply
 mask firmly in position and be capable of maintaining total
 inward leakage requirements for the device.

 Clause 7.1 Field of ision
 (EN 149:2001+A1:2009, Clause 8.4)

                           Test Requirement                                             Results                 Comment
 The field of vision is acceptable if determined so in practical
                                                                                         Comply                    Pass
                           performance

 Clause 7.15 Exhalation al e(s)
 (EN 149:2001+A1:2009, Clause 8.2                8.9.1     8. .4     8.8)

                           Test Requirement                                             Results                 Comment
 a) A particle filtering half mask may have one or more
 e halation valve(s), which shall function correctly in all                            No valves.
 orientations.
 b) If an e halation valve is provided it shall be protected
 against or be resistant to dirt and mechanical damage and
 may be shrouded or may include any other device that may                              No valves.
 be necessary for the particle filtering half mask to comply
                                                                                                                    N.A.
 with 7.9.
 c) E halation valve(s), if fitted, shall continue to operate
 correctly after a continuous e halation flow of 00 l min over                         No valves.
 a period of 0 s.
 (d) When the e halation valve housing is attached to the
 face blank, it shall withstand a ially a tensile force of 10N                         No valves.
 applied for 10 s.

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                  page 10 of 12

 Clause 7.16 Breathing Resistance
 EN 149:2001+A1:2009, Clause 8.9)

                            Test Requirement                                            Results                 Comment
 The breathing resistances apply to valved and valveless
 filtering half masks and shall meet the requirements as the
 following table.

                               Ma imum permitted resistance (mbar)
    Classification                     Inhalation                 E halation          Detail refer to
                                                                                                                   Pass
                                0 L min        9 L min            1 0 L min            Appendi
            FFP1                 0.                 2.1                 .0
            FFP2                 0.7                2.4                 .0
            FFP                  1.0                 .0                 .0

 Appendix 5: Summarization of Test Data
                                      Inhalation(mbar)                       E halation resistance(mbar)
Specimen           Condition          At 0        At 9                                 At 1 0 L min
                                      L min       L min           A              B             C              D            E
        8                              0.2          0.7          1.2            1.2           1.2            1.2          1.2
        9            A.R.              0.2       0.7             1.2            1.2           1.2            1.2          1.2
                                      resistance(mbar)
    40                                 0.2       0.7             1.2            1.2           1.2            1.2          1.2
    41                                 0.2          0.8          1.1            1.1           1.1            1.1          1.1
    42               S.W.              0.           0.8          1.1           1.1         1.1       1.1                  1.1
                                                                             E halation resistance(mbar)
    4                                  0.           0.8          1.1           1.1         1.1       1.1                  1.1
    44                                 0.2          0.7          1.0            1.0           1.0            1.0          1.0
    4                T.C.              0.2          0.7          1.0            1.0           1.0            1.0          1.0
    4                                  0.2          0.7          1.0            1.0           1.0            1.0          1.0

                     F.C.

A: facing directly ahead B: facing vertically upwards C: facing vertically downwards D: lying on the
left side E: lying on the right side

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                  page 11 of 12

 Clause 7.17 Clogging
 (EN 149:2001+A1:2009, Clause 8.9                8.10)

                           Test Requirement                                             Results                 Comment
               Clause 7.17.2 Breathing resistance
                alved particle filtering half masks:
   After clogging the inhalation resistances shall not e ceed:
    FFP1: 4 mbar, FFP2: mbar, FFP : 7 mbar at 9 L min
  continuous flow The e halation resistance shall not e ceed                       Requirement not
                                                                                                                    N.A.
                mbar at 1 0 L min continuous flow.                                   applicable.
               alveless particle filtering half masks:
    After clogging the inhalation and e halation resistances
    shall not e ceed: FFP1: mbar, FFP2: 4 mbar, FFP :
                mbar at 9 L min continuous flow
                           Test Requirement                                             Results                 Comment
          Clause 7.17. Penetration of filter material
   All types (valved and valveless) of particle filtering half
  masks claimed to meet the clogging requirement shall also
                   meet the requirements.

                                Ma imum penetration of test aerosol
                               Sodium chloride              Paraffin oil test
                                                                                   Requirement not
    Classification              test 9 L min                  9 L min                                               N.A.
                                                                                     applicable.

                                      ma .                        ma .
         FFP1                          20                           20
         FFP2
         FFP                            1                            1

 Clause 7.18 Demountable Parts
 (EN 149:2001+A1:2009, Clause 8.2)

                           Test Requirement                                             Results                 Comment
 All demountable parts (if fitted) shall be readily connected                       No detachable
                                                                                                                     N.A.
 and secured, where possible by hand                                                    part

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Report No.: S20082702701E                                                                                  page 12 of 12

                                                   Sample photo(s):
                                                                  :

                                                            Fig.1

                                                            Fig.2

                                               End of Report
The test report is effective only with both signature and specialized stamp, the result(s) shown in this
report refer only to the sample(s) tested. Without written approval of NTEK, this report can t be
reproduced e cept in full.

Shenzhen NTEK Testing Technology Co., Ltd. | Address: 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street,
Bao’an District, Shenzhen 518126 P.R.China. | Tel: +86-755-36995508 | Fax: +86-755-36995505 http://www.ntek.org.cn
Complaint Tel: +86-755-36995510 | Complaint E-mail: complaint@ntek.org.cn
Sie können auch lesen
